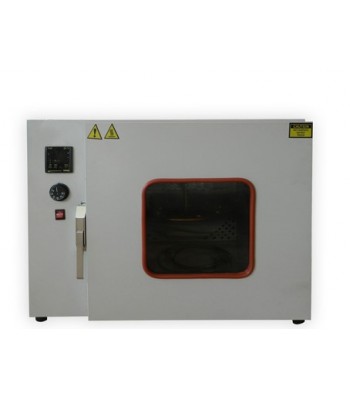

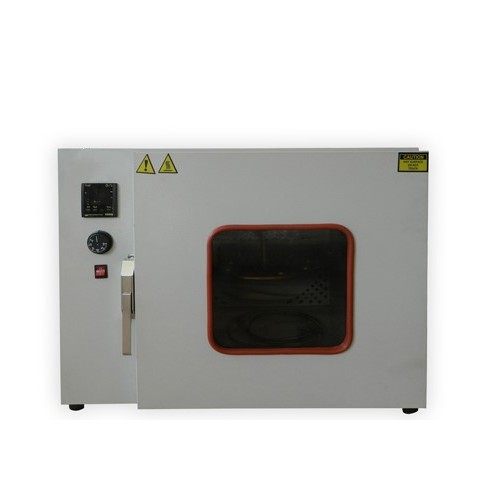

Thin Film Oven TFOT

ASTM D2872; AASHTO T240; CNR N°54 ; EN 13303

Product code
JAS- 016 Thin Film Oven TFOT


Utilized to measure the air and heat effect on a moving film of asphaltic semisolid materials.

External frame and internal chamber are stainless steel made with insulated fiberglass intermediate chamber.

Provided of large glass door for inspections.

The oven must be connected to a suitable air pressure supply.

Supplied complete with precision digital thermostat to maintain 163°C temperature, control thermometer ASTM 13C, ventilation device, set of eight glass containers dia. 64x140 mm.

The oven is equipped of a dual safety thermostat to prevent accidental over-heatings.

Power supply: 230 V 1 ph 50 Hz 1300W.

Dimensions: 620x620x910 mm.

Weight: 55 Kg.
